WNS Horizontal Fire Tube Boiler Packaged / Industrial Steam Boiler 1 Ton To 20 Ton

Product Categories
Yong Xing Boiler Group Co.,Ltd
Contact Now

WNS Horizontal Fire Tube Boiler Packaged / Industrial Steam Boiler 1 Ton To 20 Ton

Brand Name : YONGXING

Model Number : WNS1ton~20ton,1.25/1.6/2.5Mpa,Oil fired steam boiler

Certification : ISO9001,ISO14001,A-CLASS，SGS,BV

Place of Origin : HENAN PROVINCE

MOQ : 1set

Price : negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 1000SETS/MONTH

Delivery Time : 15-30DAYS

Packaging Details : Nude packing+wooden box+steel box ,and etc.

FUEL : NATURAL GAS/LPG/CITY GAS ,ETC

PRESSURE : 0 or 10bar,16bar,25bar

Burner : Italy Riello Or Italy Baltur, and brand Olin

Boiler capacity : 1Ton~20tons

Boiler outer package : Stainless Steel

Usage : for Textile factory

Features : Corrugated Furnace

Thermal Efficiency : 92.4%--94.5%

control mode : Automation

The return trip : Three return

Structure : Smoke Pipe

Material : Q345R Steel Plate

Working Life : More Than 20 Years

Protection : Interlock Alarm

Contact Now

WNS fire tube boiler Packaged Industrial Steam Boiler 1 Ton To 20 Ton

Packaged Industrial Steam Boiler Product Features

1. Packaged Industrial Steam Boiler adopt the design structure of three-way straight flow with a full wet back, high fuel efficiency, safe and stable operation.
2. With advanced automatic control design, users only need to set basic parameters, which can realize automatic operation, convenient and fast, and reduce the consumption of labor.
3. Packaged Industrial Steam Boiler Equipped with advanced self-protection function, automatically disconnect combustion and sound and light alarm in case of abnormal phenomena, safe and reliable.
4. The burner manufactured by world-renowned manufacturers can realize automatic combustion and stop.
5. Independent burner controller has multiple safety protection Settings, stable operation, and low maintenance rate.
6. The boiler adopts new thermal insulation material, lightweight, good thermal insulation effect.

Packaged Industrial Steam Boiler Advantages


1. The use of advanced furnace design, on the basis of the original steam storage capacity, has been significantly improved, can adapt to higher load pressure.
2. Built-in steam separation device can meet customers' requirements for high-quality steam quality.
3. Reasonable cleaning holes are set in the furnace body for convenient maintenance.
4. Multi-layer safety interlock control protection ensures safe operation under various working conditions.
5. Mechatronics design is compact, occupies less space and is convenient for transportation and installation.
6. Strong adaptability to various oil and steam fuels.


Packaged Industrial Steam Boiler Application fields
1. Textile factory, garment factory.
2. Beverage factory, bean products factory
3. Packaging factory, pharmaceutical factory
4. Building materials factory, coating factory
5. Bath center, beauty salon, and other enterprises and institutions

Packaged Industrial Steam Boiler technical datasheet

Model Output Pressure Temperature Fuel Temperature
(t/h) (Mpa) (ºC) (ºC)
WNS0.5-0.7/1.0/1.25-YQ 0.5 0.7/1.0/1.25 170/184/194 heavy oil/light oil, natural gas/LPG/city gas 20
WNS0.7-0.7/1.0/1.25-YQ 0.7 0.7/1.0/1.25 170/184/194 20
WNS0.8-0.7/1.0/1.25-YQ 0.8 0.7/1.0/1.25 170/184/194 20
WNS1-0.7/1.0/1.25-YQ 1 0.7/1.0/1.25 170/184/194 20
WNS1.5-0.7/1.0/1.25-YQ 1.5 0.7/1.0/1.25 170/184/194 20
WNS2-1.0/1.25/1.6-YQ 2 1.0/1.25/1.6 184/194/204 20
WNS3-1.0/1.25/1.6-YQ 3 1.0/1.25/1.6 184/194/204 20
WNS4-1.0/1.25/1.6-YQ 4 1.0/1.25/1.6 184/194/204 20
WNS5-1.0/1.25/1.6-YQ 5 1.0/1.25/1.6 184/194/204 20
WNS6-1.0/1.25/1.6-YQ 6 1.0/1.25/1.6 184/194/204 20
WNS8-1.25/1.6-YQ 8 1.25/1.6 194/204 20
WNS10-1.25/1.6-YQ 10 1.25/1.6 194/204 20
WNS12-1.25/1.6-YQ 12 1.25/1.6 194/204 20
WNS15-1.25/1.6-YQ 15 1.25/1.6 194/204 20
WNS20-1.25/1.6-YQ 20 1.25/1.6 194/204 20

WNS Horizontal Fire Tube Boiler Packaged / Industrial Steam Boiler 1 Ton To 20 Ton


Product Tags:

oil powered boiler



fuel oil boiler


Wholesale WNS Horizontal Fire Tube Boiler Packaged / Industrial Steam Boiler 1 Ton To 20 Ton from china suppliers

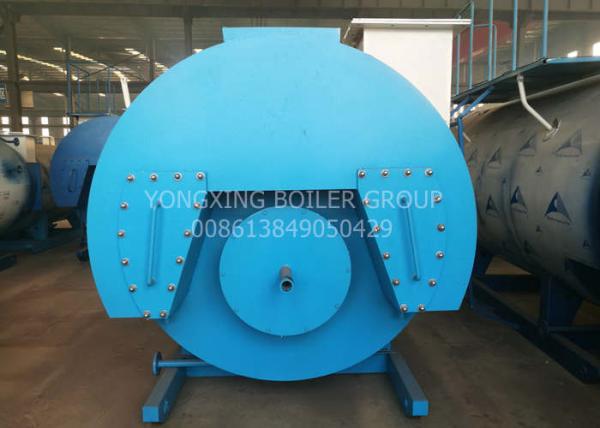

WNS Horizontal Fire Tube Boiler Packaged / Industrial Steam Boiler 1 Ton To 20 Ton Images
